Description
Description

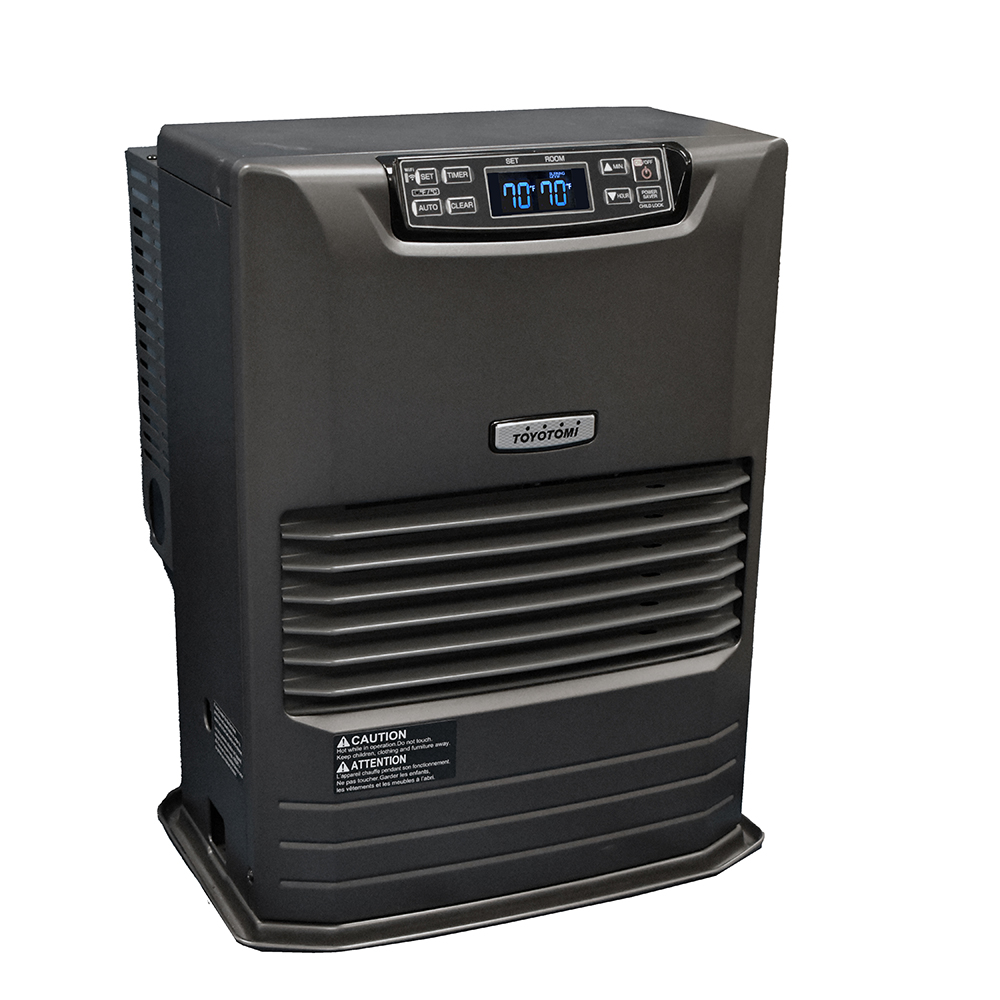

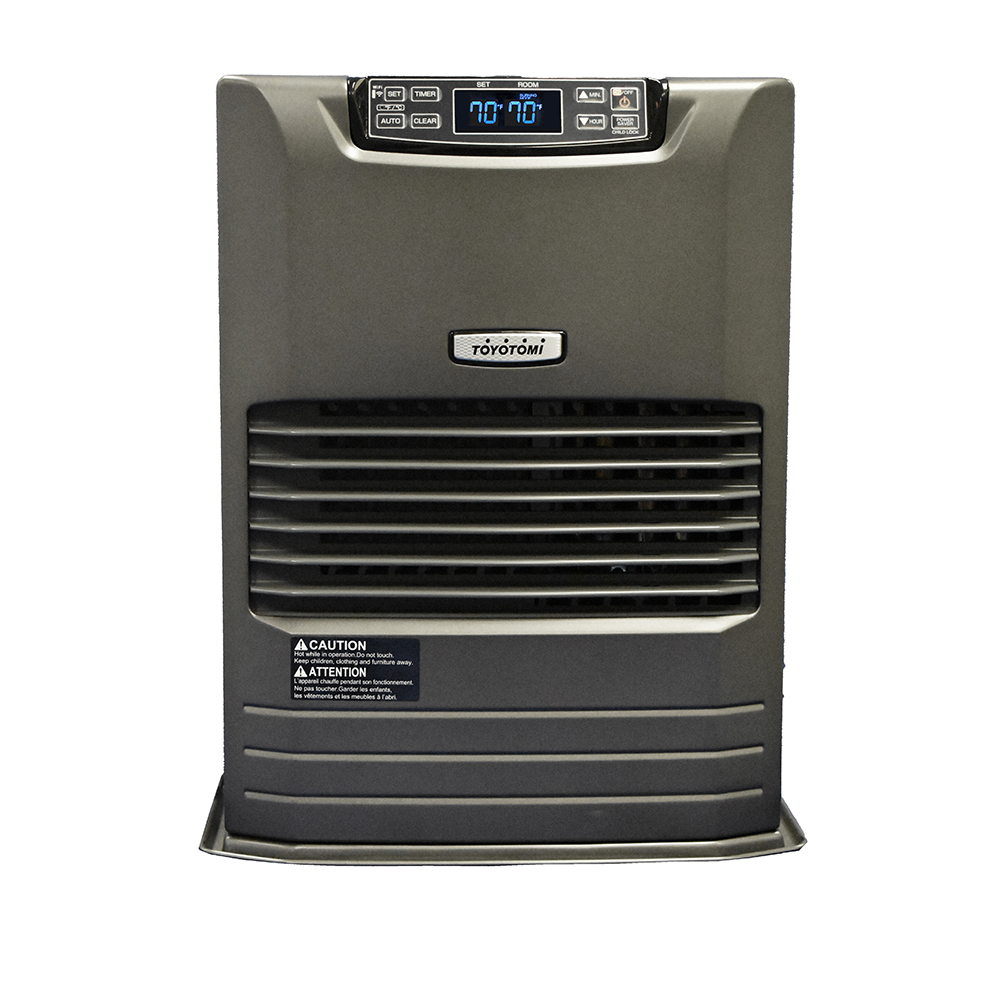

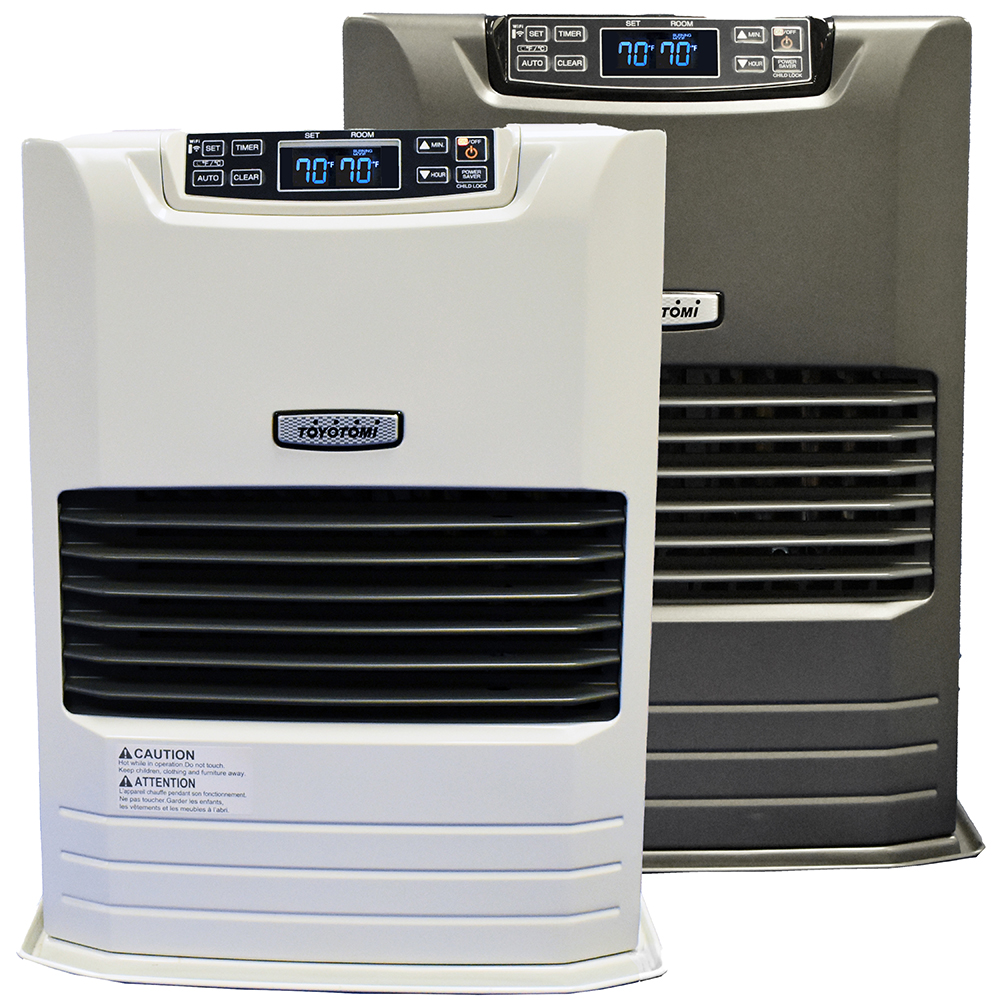

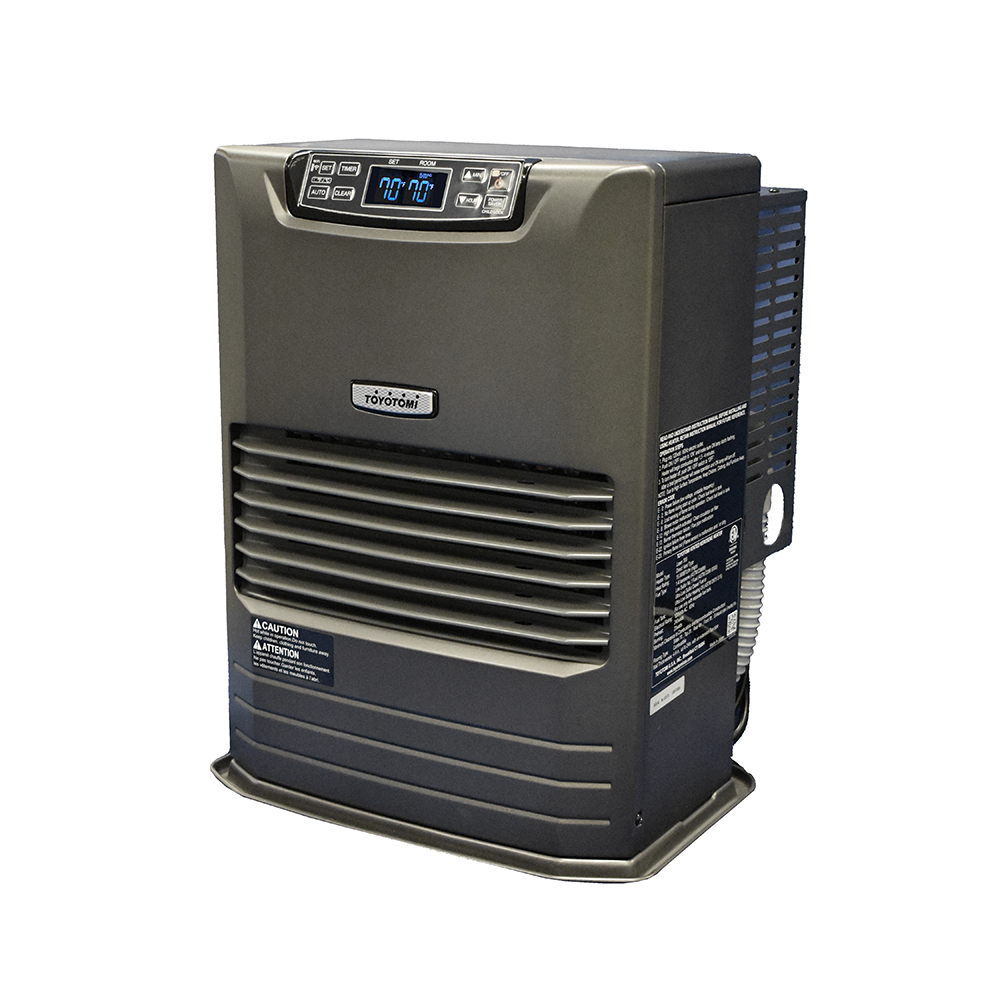

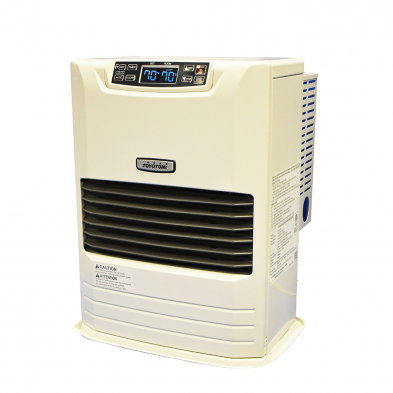

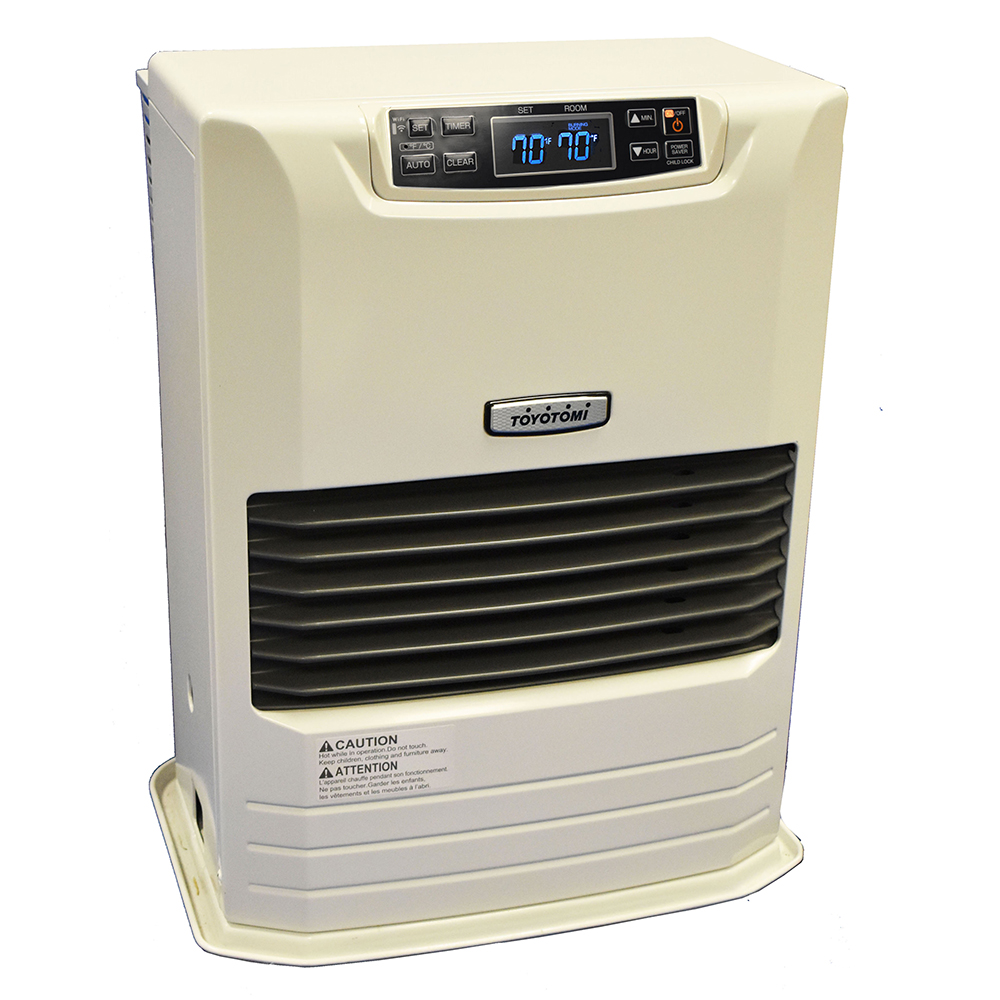

The TOYOTOMI Laser 301 is the smallest output wall furnace available from TOYOTOMI. The TOYOTOMI Laser 300 heats up to 720 Sq. Ft. of living space for at a fraction of alternative heat sources. The TOYOTOMI Laser 300 is a sealed combustion or direct-vent system that uses only outside air. It also vents gases directly outside. This high-efficiency model provides safe, comfortable warmth for zone heating, small homes, and cabins. These new models are now Wi-Fi compatible.
Features
Features
EFFICIENT AND ECONOMICAL
TOYOTOMI Laser products are the most fuel-efficient, energy-saving, oil* heating systems available.
- Uses up to 50% less fuel for heating comparable size areas than conventional oil-fired heating systems at a fraction of the cost
- The only oil-fired modulating burner in North America
(increases efficiency) - Pays for itself in fuel savings in just a few short years
COMFORTABLE AND WI-FI COMPATIBLE
The Laser series large circulation fan distributes heat quickly and evenly in order to maintain and optimize maximum comfort.
- Automatically regulate between low, medium and high-temperature settings
- New Wi-Fi feature allows changing temperature remotely
from an app on your Apple or Android device - Self shut-off when room rises approximately 4° above the desired temperature
CLEAN, SAFE & ODORLESS
Advanced heating pipe-within-a-pipe forced flue venting system creates smokeless, odorless, clean heating.
- Lower emissions (up to 50% less CO2) than conventional oil-fired heating systems
- Outside pipe brings in outside air for combustion
- Inside pipe exhausts all combustion by-products to the outside
- Circulating fan distributes heat
- Cool-to-the-touch cabinet safe for kids and pets
- Permanent mesh filter protects circulation fan and interior components from dust
EASY INSTALLATION
Owner's manual provides complete, step-by-step instructions that are helpful and easy to understand.
- Installation takes about three hours, or less
- Vents through a side wall using the direct vent kit which is included with heater
- Full range of optional parts and accessories available offers a variety of different installations
FLEXIBLE FUEL OPTIONS
Toyostove Vented Heaters can use the following fuels without any modifications to the unit:
- Ultra Low Sulfur Heating Oil (ULSHO)
- Ultra Low Sulfur Diesel (ULSD)
- #1 Low Sulfur Fuel Oil, or K-1 Kerosene
Check with your local fuel oil dealer for which of these fuels are available in your area.
EXHAUST SYSTEM
The Laser Series flue pipe makes venting to the outside simple and easy. Completely flexible, it adjusts to wall thickness. A small vent cap is all that can be seen from the outside.
SET-BACK
Weekly Timer Operation allows for up to 30 different Set-Back temperatures. The Weekly Timer can be used to change the temperature for different days of the week and several times during the day.
Specifications
Specifications
| Fuel Type: | Ultra Low Sulfur Heating Oil (ULSHO) or Ultra Low Sulfur Diesel Fuel (ULSD) (ASTM D975 S15), Low Sulfur No. 1 Fuel (ASTM D396 S500), or K-1 Kerosene (ASTM D3699) |
| Heating Efficiency: | 87% (AFUE Rating) |
| Heating Rating: | 15,000 BTU/Hr (High) 10,100 BTU/Hr (Medium) 5,310 BTU/Hr (Low) |
| Fuel Consumption: | 0.11 Gal/Hr (High) 0.08 Gal/Hr (Medium) 0.04 Gal/Hr (Low) |
| Size (WxHxD): | 17-3/8" x 21-3/4" x 15-1/8" |
| Weight: | 31 lbs (empty) |
| Heating Area: * | 600 sq. ft. at (0°F) 720 sq. ft. at (20°F) |
| Max. Length of Vent Pipe System: |
Maximum 10 ft., 3 bends or less |
| Electrical Rating: | 120 Volts AC, 60 Hz Preheat: 240 Watts Burning: 23 Watts |
| Vent Hole Pipe: | 2-3/4" - 3" Diameter |
| Type of Tank: | Exterior Tank |
* 0° F Heat Load = 24 BTU/ft²/hr
20° F Heat Load = 20 BTU/ft²/hr
Room size for which this heater is suitable will vary depending on outside temperature, house insulation, window
size and other factors.
