Radiant or convection oil heating. An ideal size for all weather tents, small cabins and homes. Radiant or convection heating for larger tents and cabins. The 130 Series NordicStoves are freestanding natural draft oil-fired room heaters of the vaporizing burner type built for residential installation. They are manually-lit and utilize a vaporizing type burner that are suitable for use with Number 1 and Number 2 fuel oils.
The appliance utilizes an oil control that provides variable flame control through a manually-operated control knob. The oil control valve features a flooded-bowl safety reset lever and the ability to accommodate a room temperature actuated thermostatic control device. The 130 series maximum setting, has an input rating of 20,307 Btu/hour. The proximal output is 13,000 Btu. All models are designed and equipped with a flat, thick, top plate that acts as a cooking surface. Available in 4 model styles.

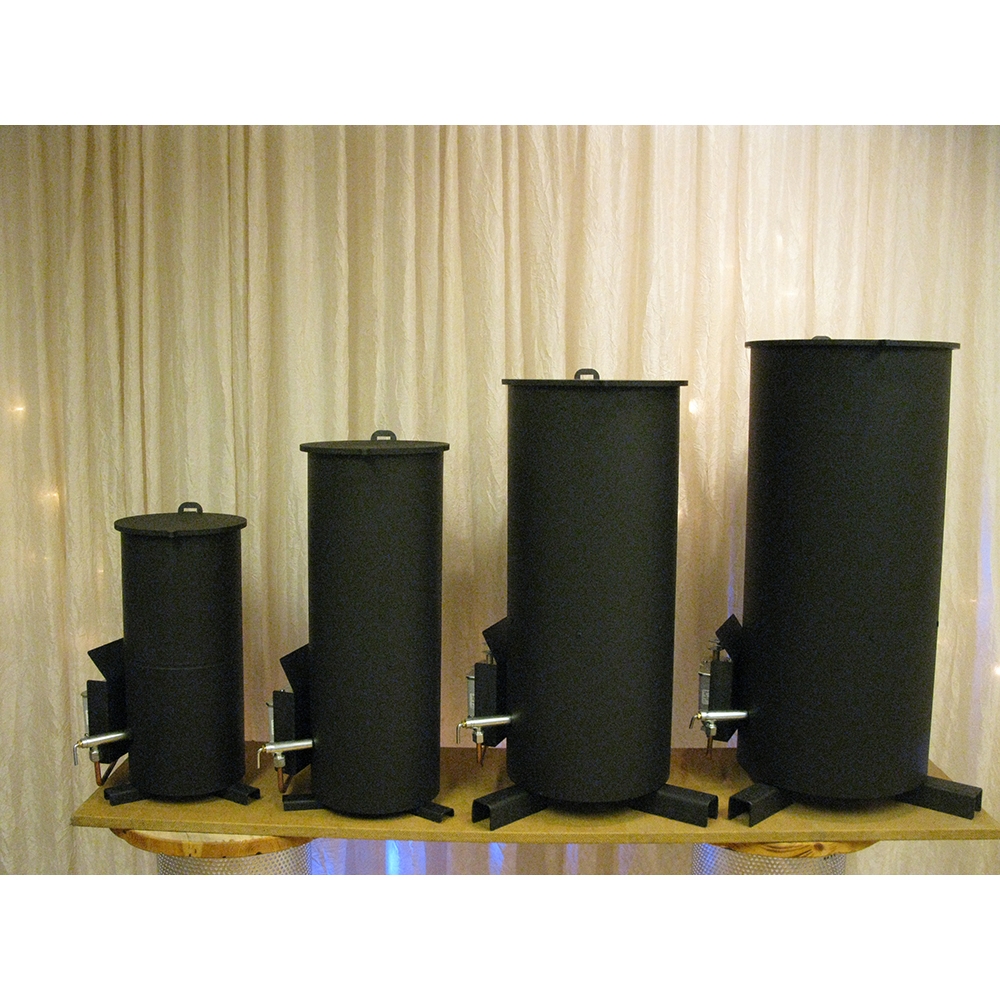

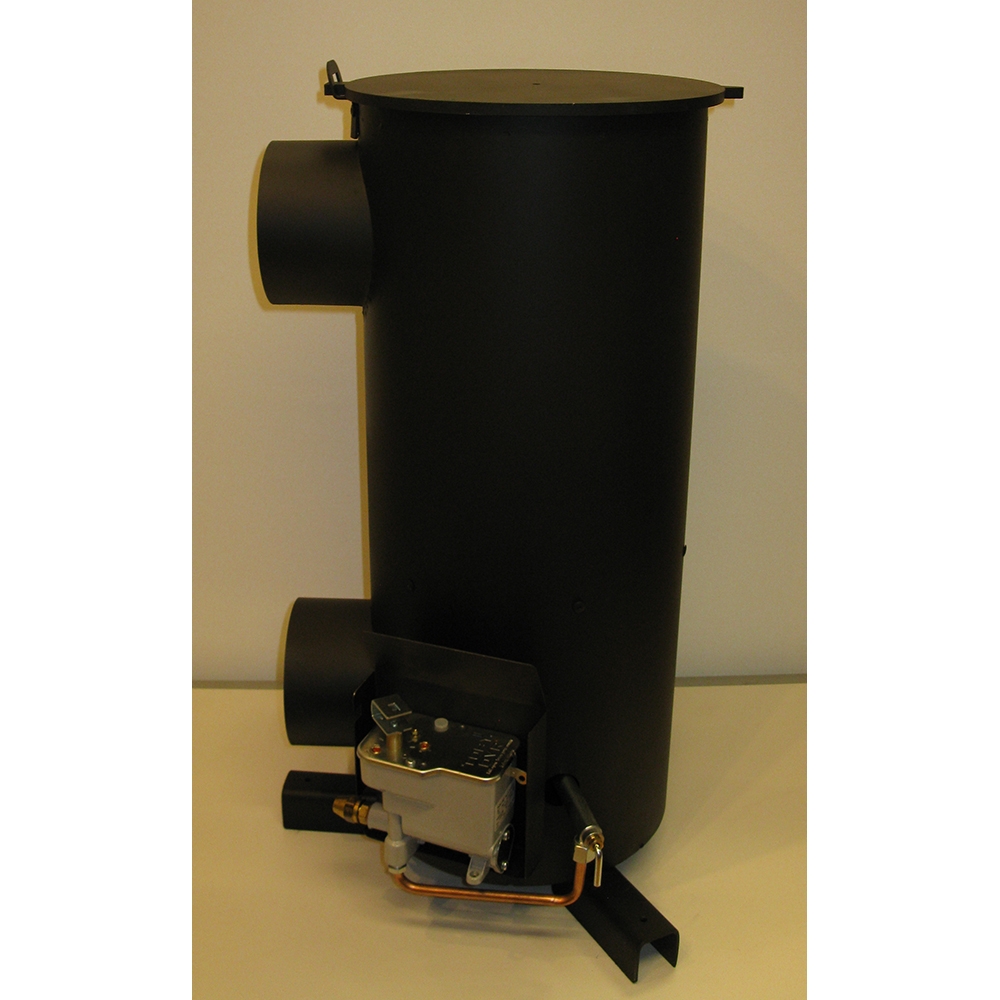

Basic: If you're looking for a no frills heating system, here's the answer. The Basic offers economical, effective heating for those applications that require versatility and durability at low cost. Matte black painted finish, radiant heater

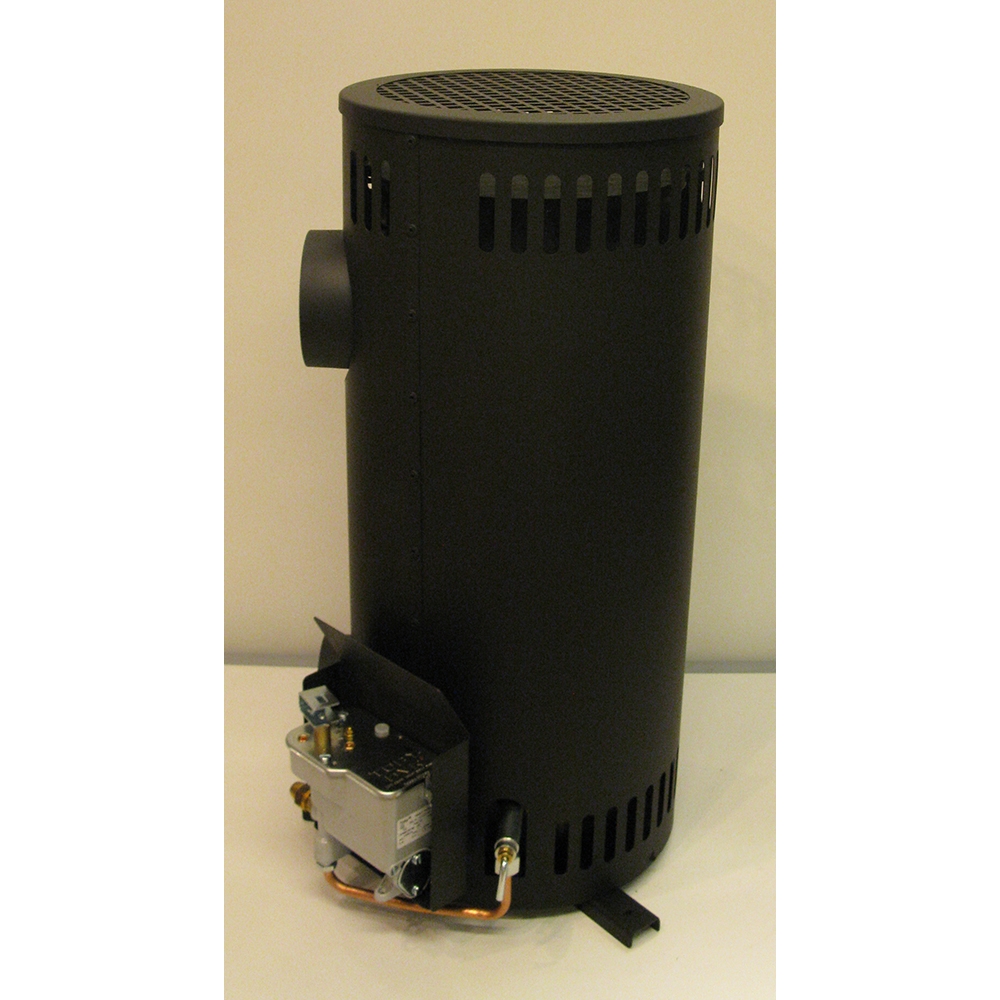

Convector: Similar to the basic, the Convector offers the additional benefit of convection heating. Slots in the bottom and top of the convector cover create an airflow that increases the effectiveness of the heater. Matte black painted finish, radiant heater with external jacket providing convection air.

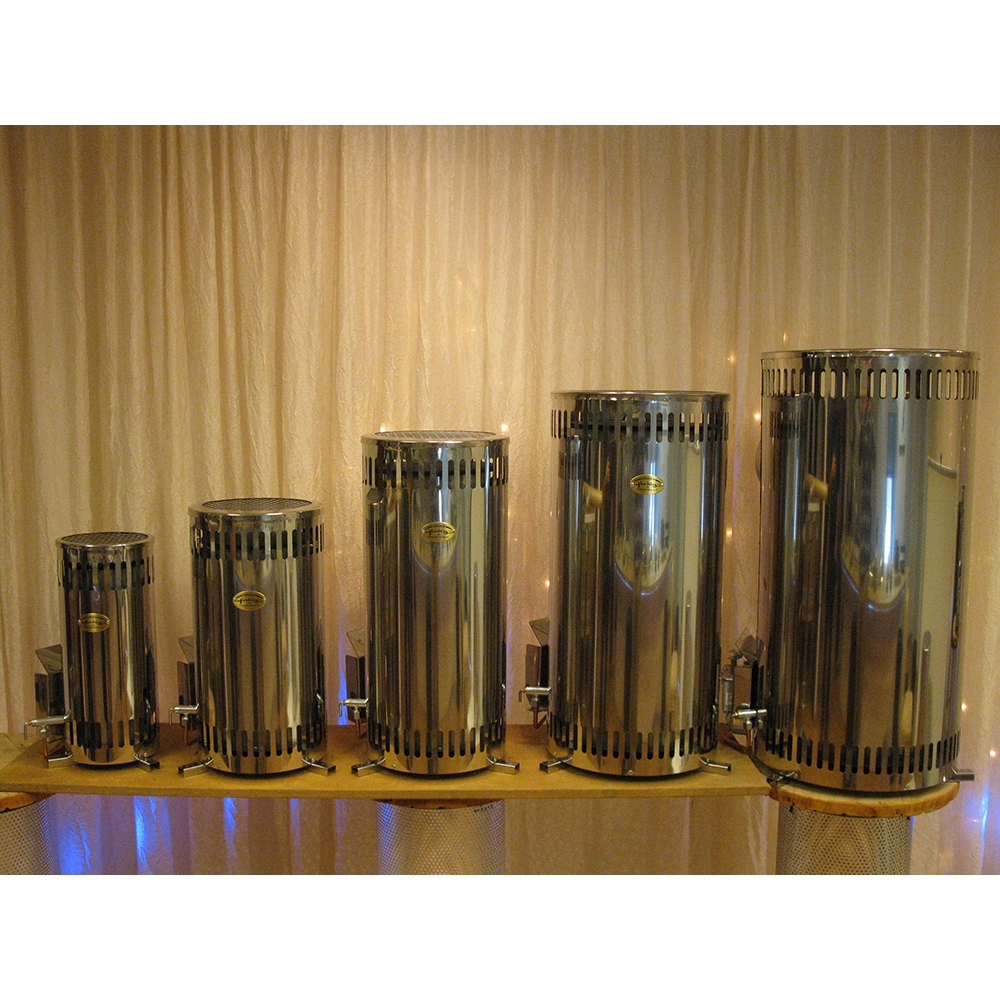

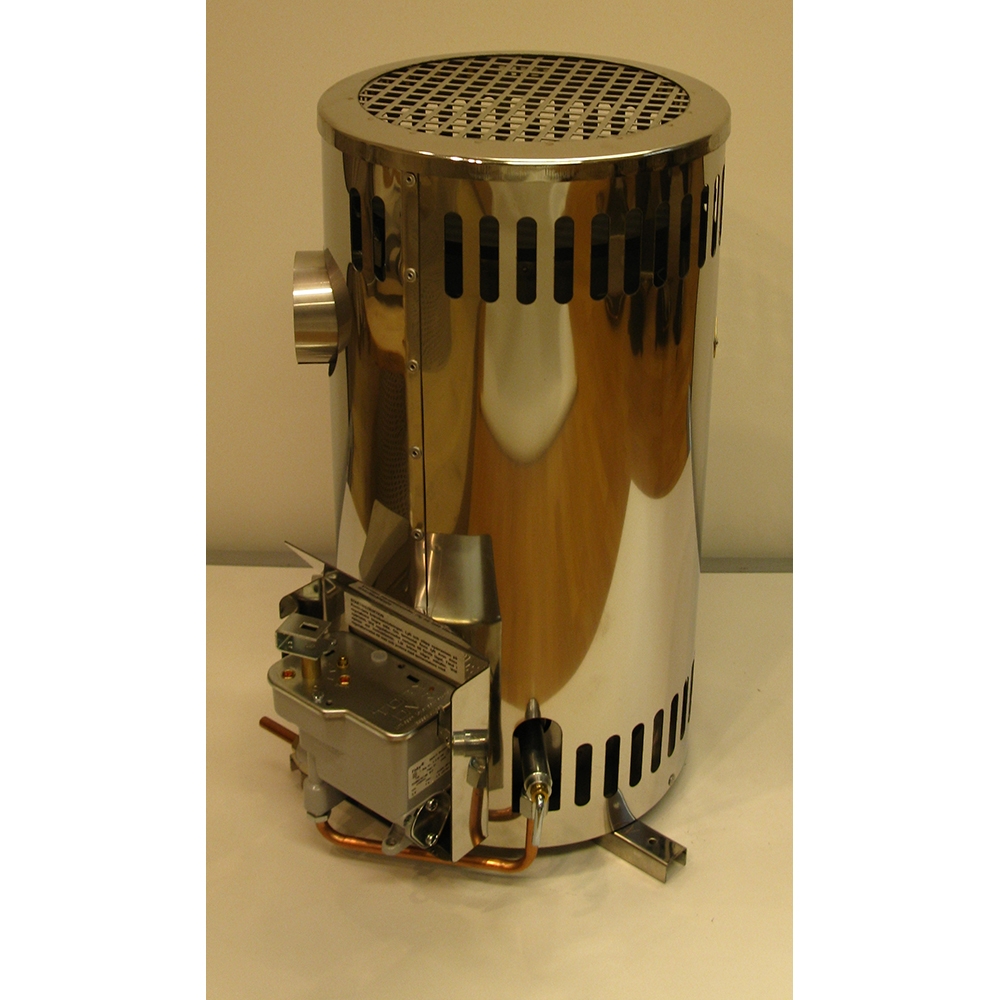

Deluxe: Constructed of high quality stainless steel, the Deluxe offers maximum durability with improved appearance. Attractive convector cover is a standard feature.Polished stainless steel finish, external jacket providing convection air.

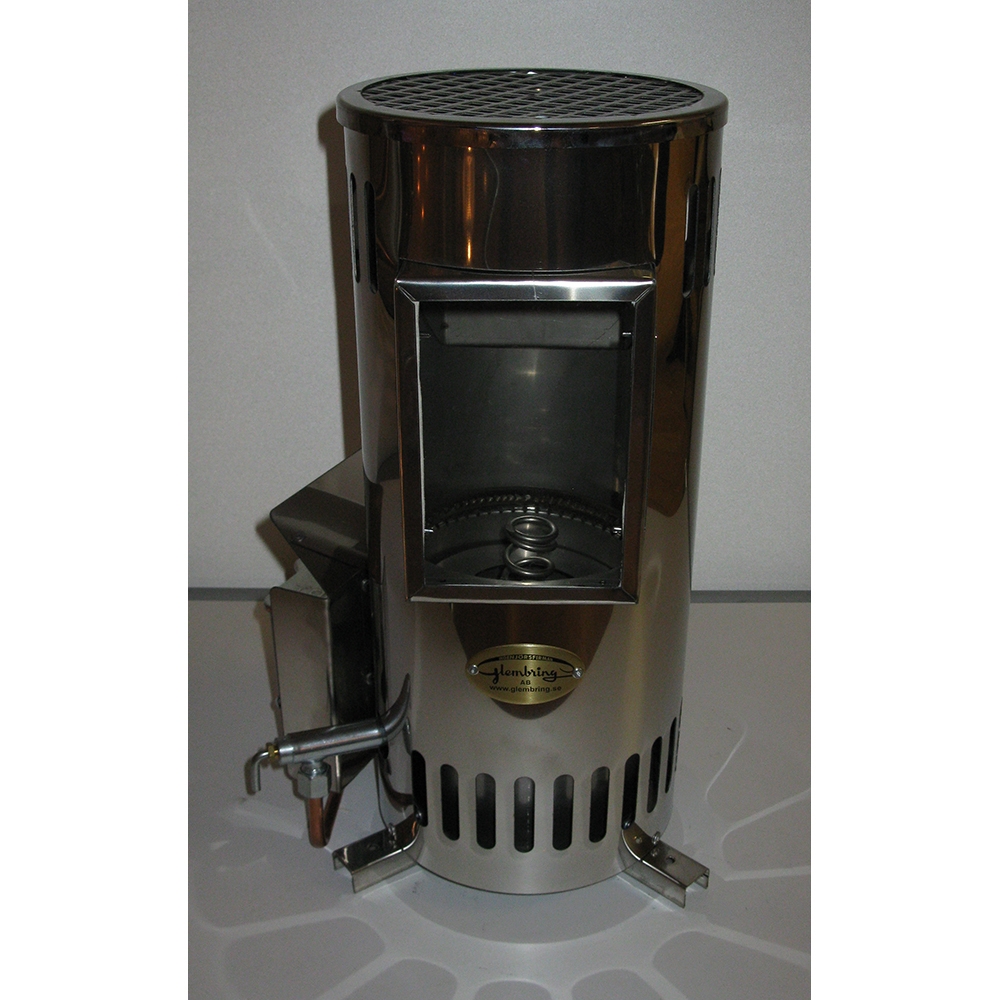

Rustic: The Rustic offers all the features of the Deluxe with the addition of a window allowing the warm glow of dancing flames to come out into your living area. Polished stainless steel finish, external jacket providing convection air, and fire viewing glass window.
Features
Features
Available in four model types:
-->Basic (radiant heater)
-->Convector (black steel convection heater)
-->Deluxe (stainless steel convection heater)
-->Rustic Deluxe (Deluxe with window)
Operate without the need for electricity
Heavy stovetop allows all units to be used for cooking
High quality Toby oil control comes with built in safety features
Preset for #1 fuel oil - unit can also burn #2 fuel oil
Wide opening lid makes for easy lighting and cleaning
Optional 3.75 gallon plastic fuel tank and quick connect hose is perfect for emergency or day use
Specifications
Specifications
Type of Fuel: | #1 or #2 heating oil |
Input Rating: | 20,307 Btu/hour |
Output Rating: | 13,000 Btu/hour |
Flue Size: | 4" |
Height / Diameter - (Approx. Dimensions): | 22" x 14" |
Fuel Consumption Min/Max (Approx.): | .053 - .150 GPH |
Weight (Approx.): | 18 - 23 lbs |
Toby Oil Control Valve: | Min. 2.5 cc/min, Max. 9.5 cc/min |
Fuel Supply Compression Fitting: | Male and Female Compression fitting for 3/8" tubing |
Fuel Line, Valve to Burner: | 5/16" Copper Tubing with one male and one female compression fitting |
Burner Ring, Lower: | 0.042 Mild Steel, 4.5" with 3 notches on outside diameter |
Burner Ring, Upper: | 0.042 Mild Steel, 4.75 6.25" inside diameter |
Burner Pot: | 10" diameter, 6.75" deep, .030 Stainless |
Firebox Jacket: | 0.070" Stainless |
Firebox Top: | 0.316" Cast Iron |
Outer Jacket (Deluxe and Rustic models): | 0.030 Stainless |
Outer Jacket Top (Deluxe and Rustic models): | 0.030 Stainless, 0.39 x 0.39 perforation pattern |
Fire Viewing Glass (Rustic model only): | 9.4375 x 5.688, 4mm Ceramic |
Door Glass Gasket (Rustic model only) | 5/8" wide, 1/8" thick mineral fiber sheet |
Combustion Air Inlet Collar: | 4" Diameter, 0.02" Stainless |
Valve Heat Shield: | 7" H x 5.45" W x 1.25" D, 0.040 Stainless |
