NordicStove 40,000 Series

Description

Description

Radiant or convection heating for larger tents and cabins. The 400 Series NordicStoves are freestanding natural draft oil-fired room heaters of the vaporizing burner type built for residential installation. They are manually-lit and utilize a vaporizing type burner that are suitable for use with Number 1 and Number 2 fuel oils.

The appliance utilizes an oil control that provides variable flame control through a manually-operated control knob. The oil control valve features a flooded-bowl safety reset lever and the ability to accommodate a room temperature actuated thermostatic control device. The 400 maximum setting, (sixth and final index on the valve), has an input rating of 54,075 Btu/hour. The proximal output is 40,000 Btu.

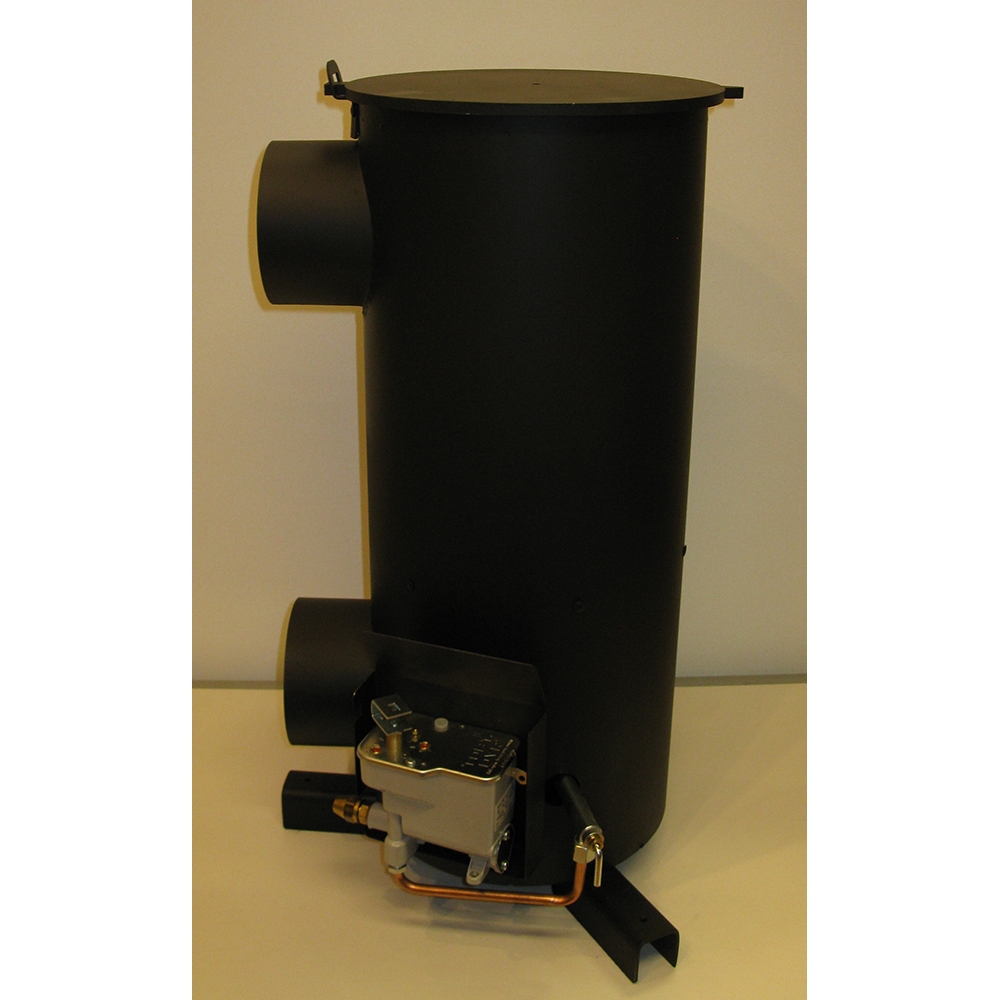

Basic: If you're looking for a no frills heating system, here's the answer. The Basic offers economical, effective heating for those applications that require versatility and durability at low cost. Matte black painted finish, radiant heater

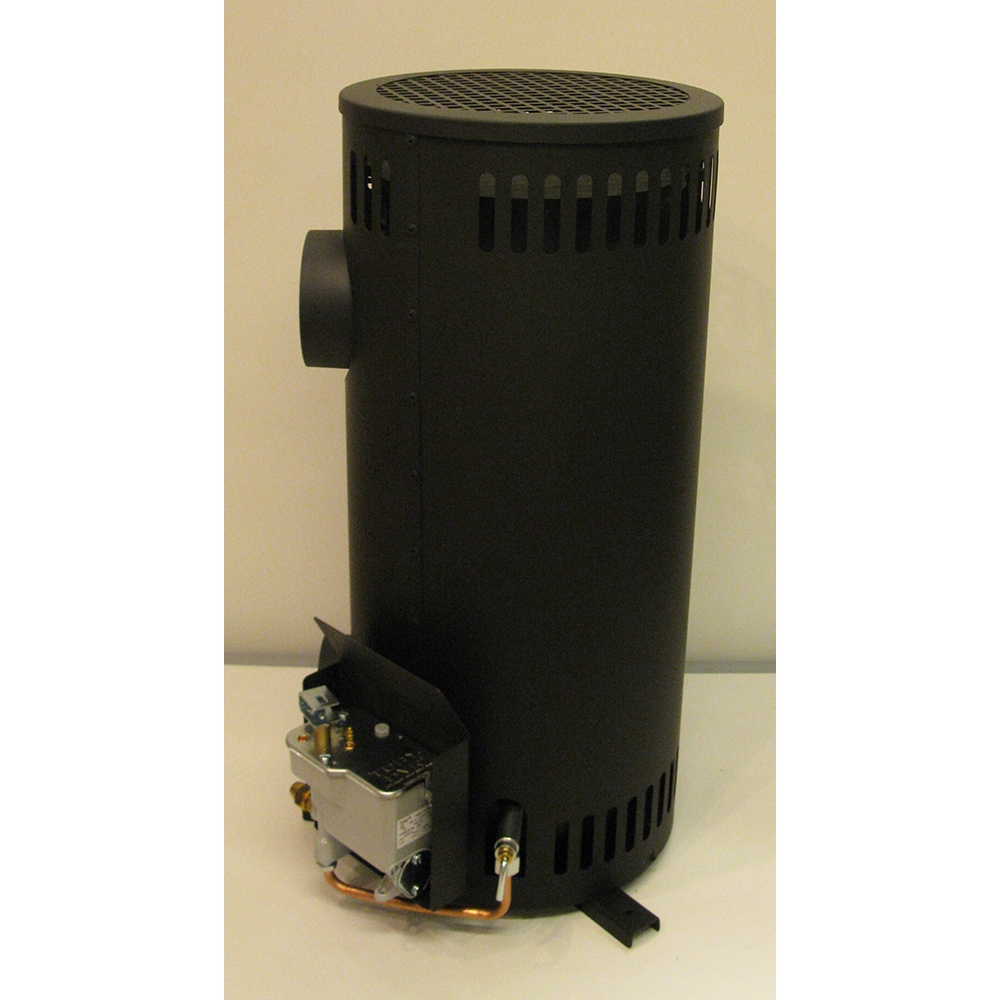

Convector: Similar to the basic, the Convector offers the additional benefit of convection heating. Slots in the bottom and top of the convector cover create an airflow that increases the effectiveness of the heater. Matte black painted finish, radiant heater with external jacket providing convection air.

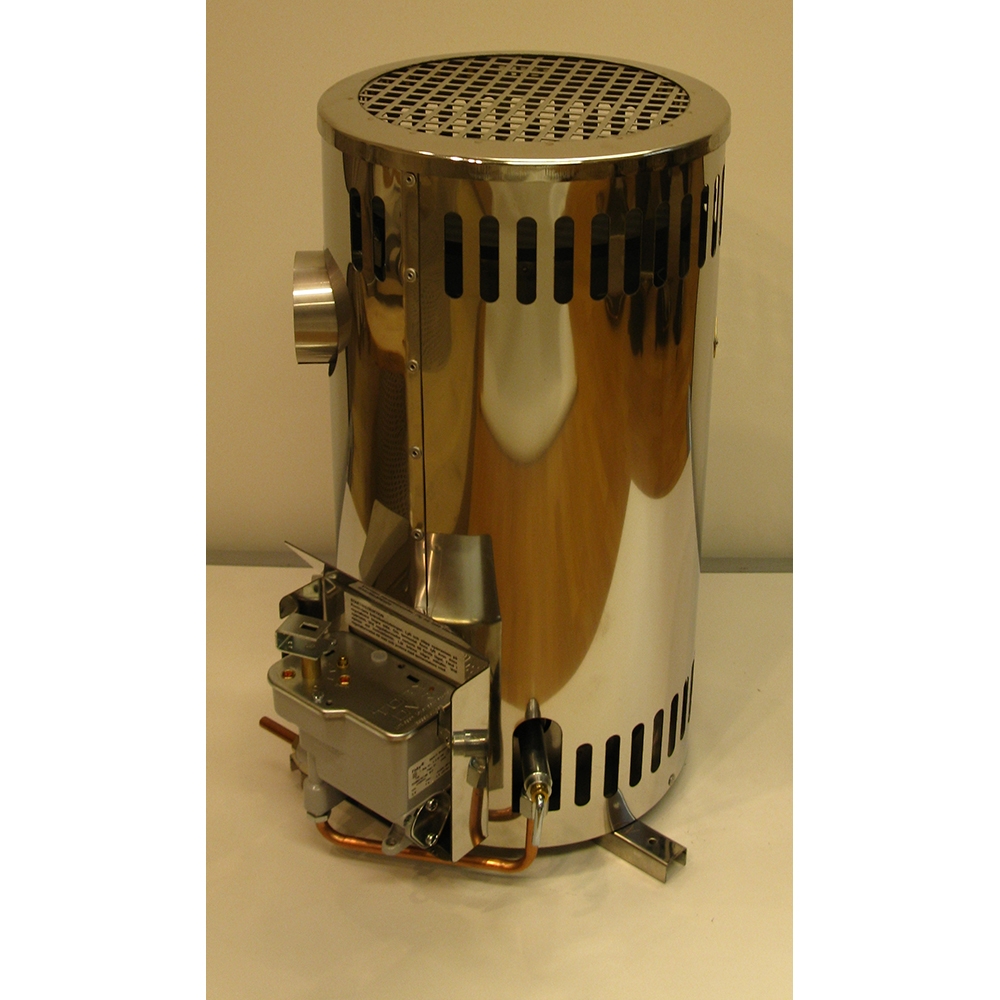

Deluxe: Constructed of high quality stainless steel, the Deluxe offers maximum durability with improved appearance. Attractive convector cover is a standard feature.Polished stainless steel finish, external jacket providing convection air.

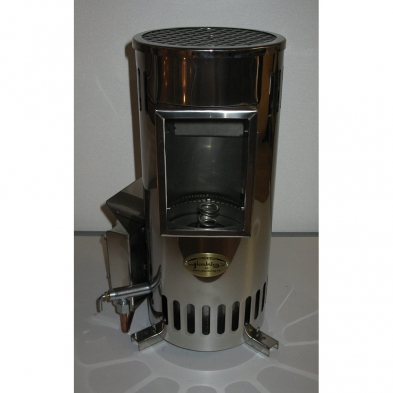

Rustic: The Rustic offers all the features of the Deluxe with the addition of a window allowing the warm glow of dancing flames to come out into your living area. Polished stainless steel finish, external jacket providing convection air, and fire viewing glass window.

Features

Features

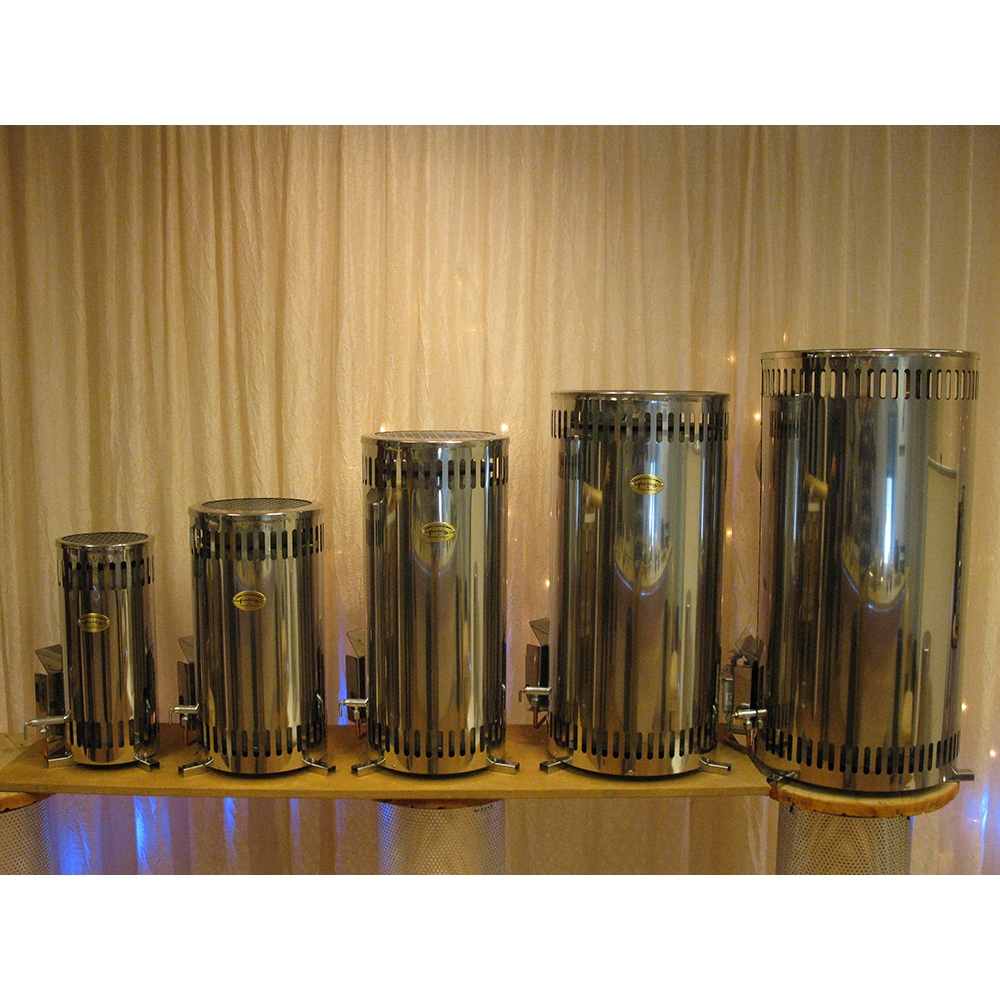

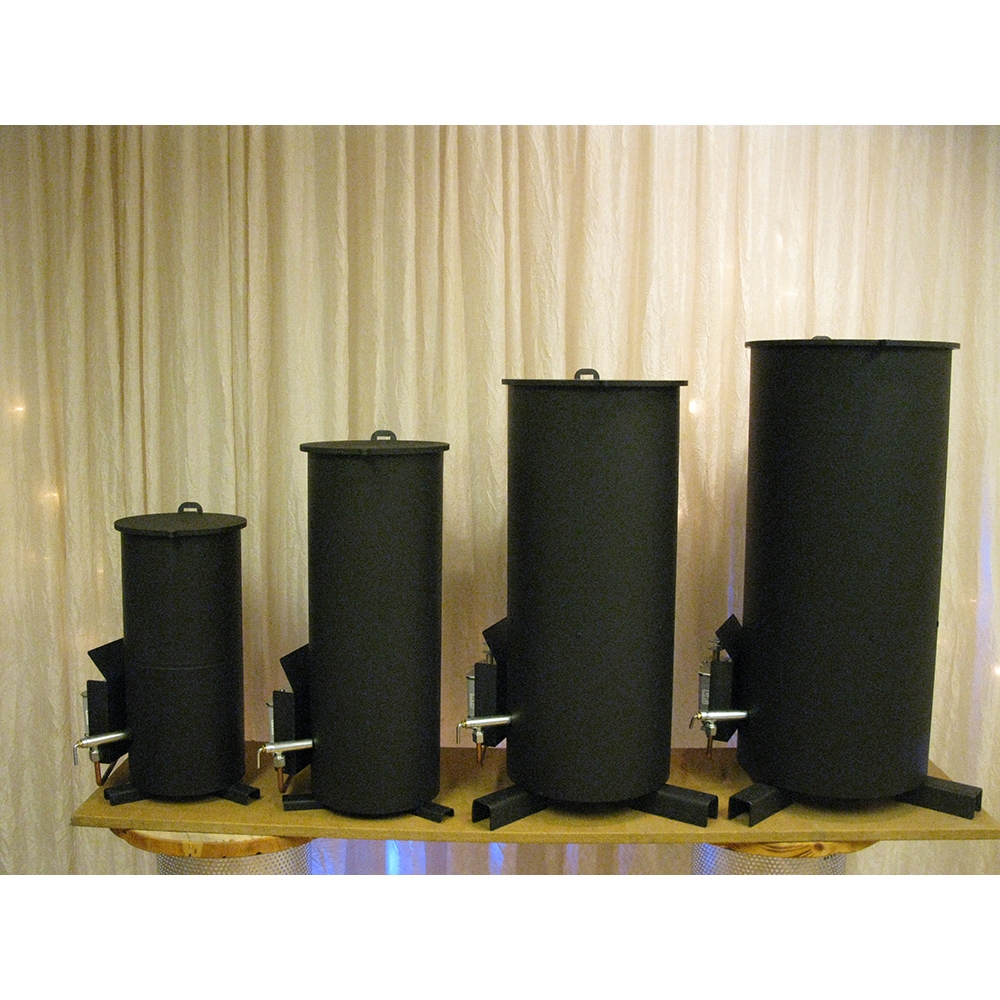

Available in four model types:

-->Basic (radiant heater)

-->Convector (black steel convection heater)

-->Deluxe (stainless steel convection heater)

-->Rustic Deluxe (Deluxe with window)

Operate without the need for electricity

Heavy stovetop allows all units to be used for cooking

High quality Toby oil control comes with built in safety features

Preset for #1 fuel oil - unit can also burn #2 fuel oil

Wide opening lid makes for easy lighting and cleaning

Optional 3.75 gallon plastic fuel tank and quick connect hose is perfect for emergency or day use

Specifications

Specifications

Type of Fuel: #1 or #2 heating oil
Input Rating: 54,075 Btu/hour
Output Rating: 40,000 Btu/hour
Flue Size: 6"
Height / Diameter - (Approx. Dimensions): 31" x 16"
Fuel Consumption Min/Max (Approx.): .122 - .399 GPH
Weight (Approx.): 60 - 65 lbs
Toby Oil Control Valve: Min. 3.0 cc/min, Max. 25.4 cc/min
Fuel Supply Compression Fitting: Male and Female Compression fitting for 3/8" tubing
Fuel Line, Valve to Burner: 5/16" Copper Tubing with one male and one female compression fitting
Burner Rings: 0.078 Stainless, 6.25" inside diameter
Burner Pot: 10" diameter, 6.75" deep, .030 Stainless
Firebox Jacket: 0.070" Stainless
Firebox Top: 0.316" Cast Iron
Outer Jacket (Deluxe and Rustic models): 0.030 Stainless
Outer Jacket Top (Deluxe and Rustic models): 0.030 Stainless, 0.39 x 0.39 perforation pattern
Fire Viewing Glass (Rustic model only): 9.4375 x 5.688, 4mm Ceramic
Door Glass Gasket (Rustic model only) 5/8" wide, 1/8" thick mineral fiber sheet
Combustion Air Inlet Collar: 6" Diameter, 0.02" Stainless
Valve Heat Shield: 7" H x 5.45" W x 1.25" D, 0.040 Stainless
