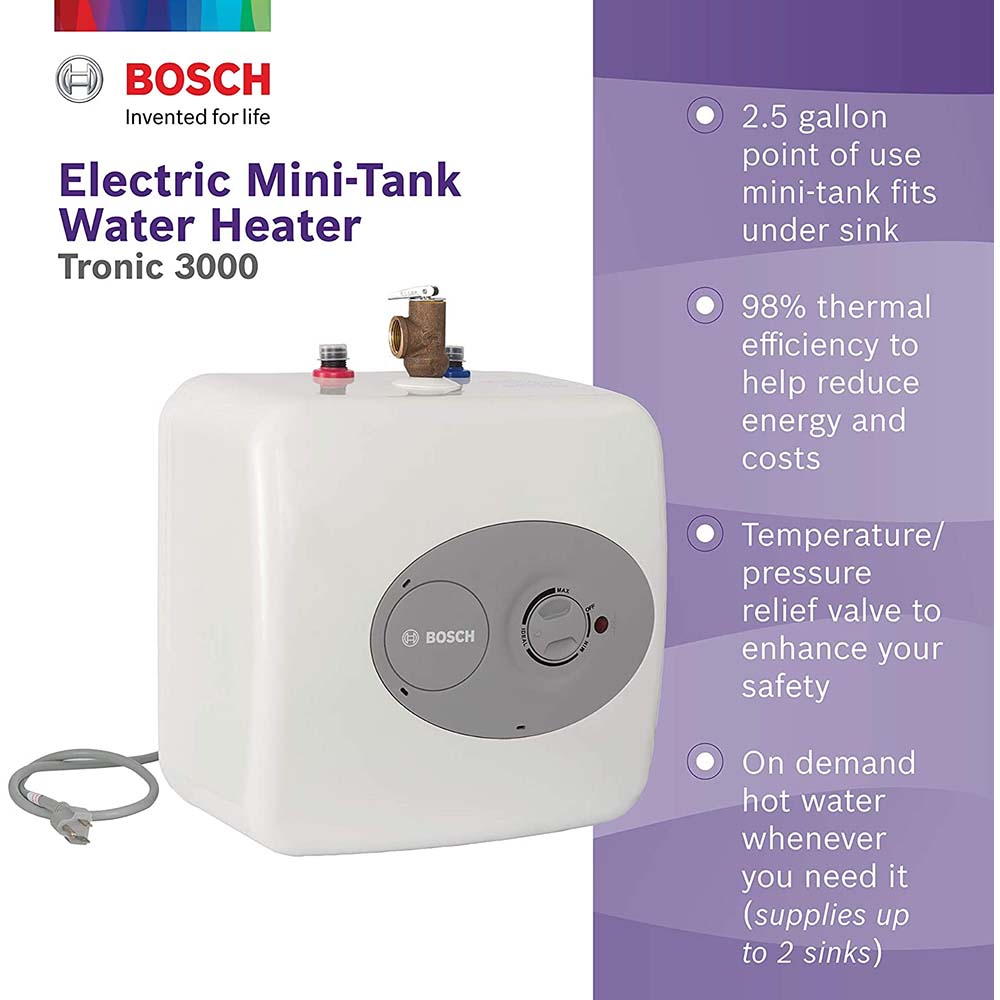

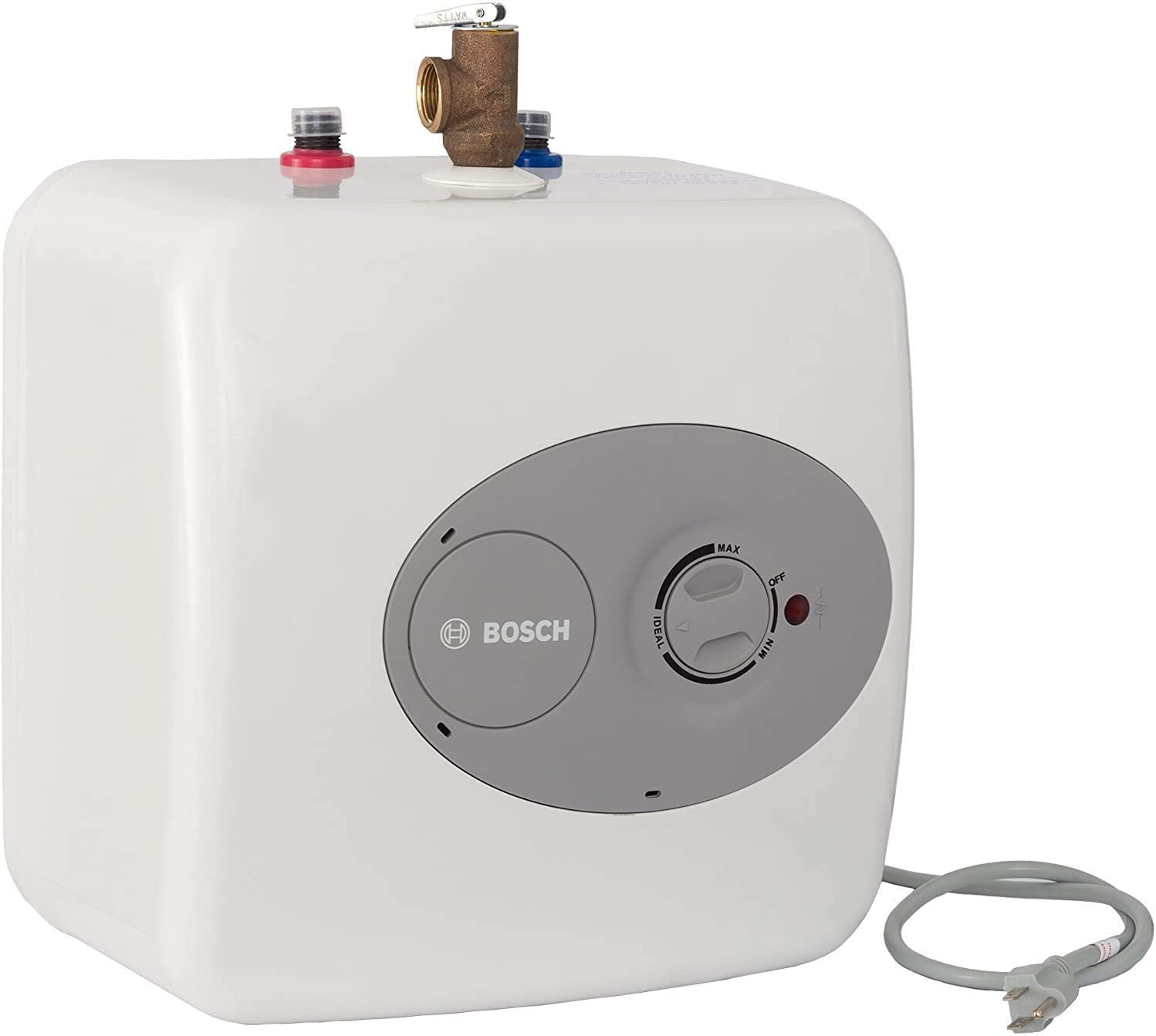

Our point-of-use electric mini-tanks are available in three sizes which can be floor standing or wall hung. To get hot water where it’s needed, when it’s needed, use the Tronic 3000T point-of-use electric mini-tank heater from Bosch. This heater can supplement a primary water heating source, or be the primary water heating source for point-of-use applications.
Applications
- Sinks located far from primary water heater
- Kitchenettes
- In-law suites
- Half bathroom or powder room

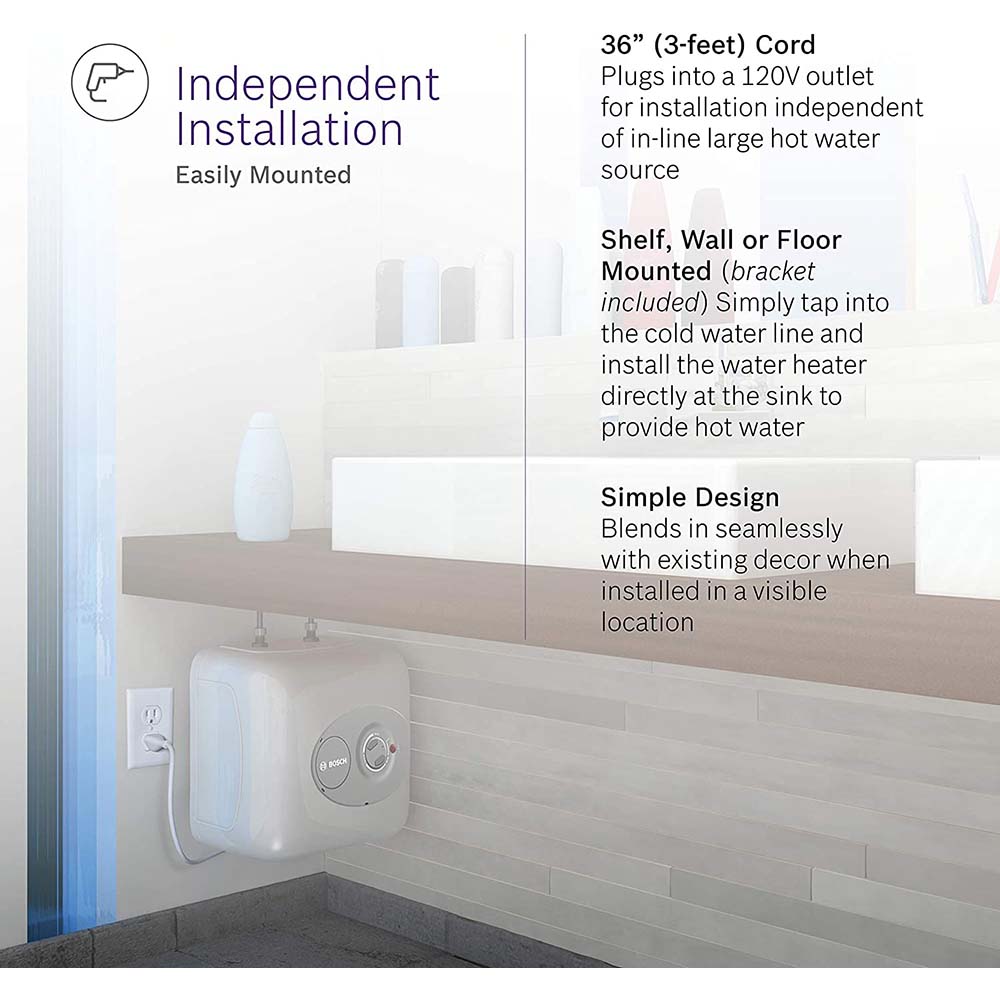

Easy Installation
Simply tap into the cold water line, provide an electrical connection and install the water heater near the sink. The heater can be used alone to provide a small volume of water or installed inline with a central water heater near the point-of-use to eliminate the wait for hot water.
Features
Features
- Knob for easy temperature adjustment
- LED indicates when the tank has reached the set temperature
- Units can be floor standing or wall-mounted (bracket included)
- Models ES2.5 and ES4 have a 120 VAC plug-in connection
- Compact, lightweight, space-saving
- Temperature / pressure relief valve included
- 6-year limited warranty(1)
Specifications
Specifications
| Technical Specifications | ES8 | ES4 | ES2.5 |
|---|---|---|---|
| Part Number | 7738004998 | 7738004997 | 7738004996 |
| Tank Volume (gal) | 7.1 | 4 | 2.7 |
| Heating Capacity, Watts | 1440 | 1440 | 1440 |
| Recovery Rate @ 90°F Rise, GPH | 6.8 | 6.8 | 6.8 |
| Temperature Range (°F) | 65 - 145 | 65 - 145 | 65 - 145 |
| Maximum Operating Pressure | 150 | 150 | 150 |
| Weight (lbs) | 29.5 | 17.3 | 15.5 |
| Dimensions (in) | 17½ x 17½ x 14½ | 14 x 14 x 12¼ | 14 x 14 x 10¼ |
| Water Fittings | ¾" Male NPT | ½" Male NPT | ½" Male NPT |
| Relief Valve | Included | Installed | Installed |
| Electrical Requirements | |||
| Volts (VAC) | 120 | 120 | 120 |
| Amps | 120 | 120 | 120 |
| Wire Type | Hard Wired | Plug-In | Plug-In |
