Description
Description

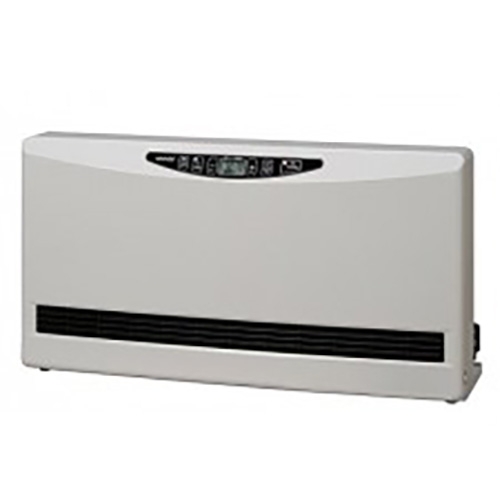

The TOYOTOMI HC-190 is a new and improved version of the popular HC-20. The HC-190 heat convector is a compact, high-efficiency heat distribution system. TOYOTOMI HC-190 is the perfect solution to replace or enhance the existing baseboard. The appliance is designed to complement all of today’s high-efficiency boilers – gas, oil, or electric by circulating hydronic heat with a multi-speed fan warming the air in your home. This model has top-of-the-line efficiency, with aquastatic controls for boilers that use low water temperatures. Internal thermostat control circuitry allows the unit to communicate to a zone valve or boiler controller, a feature no other convector has.
Features
Features
Complements the highest efficiency, aquastatic controlled boilers that use low water temperatures.
Internal thermostat control circuitry communicates with zone valve or boiler controller -
an exclusive feature that no other convector has!
Easy to use LED display panel with built-in thermostat that instructs boiler when zone should come on or off based on homeowner’s desired comfort requirement.
Variable fan speed maximizes operating efficiency and fuel savings.
Benefit of both radiant heat and convective heat.
Whisper-quiet fan efficiently distributes heat evenly throughout the home.
Heats an area of 300 to 1,000 square feet (heat output of 4,050 BTU per hour on a low setting to
20,000 BTU per hour on high).
Saves valuable wall space, replacing up to 37 feet of baseboard*.
Can be installed in less than half the time of baseboard.
10-year heat exchanger limited warranty.
Specifications
Specifications
| Model: | HC-190 heat convector |
| Type | hot water heating, floor standing, or wall hanging (with available accessory) |
| Heating Range | 4,050 - 20,000 BTU/h |
| Heating Exchanger | 0.16 gal. (0.6L) |
| Flow Rate | 0.5 gal./min. to 1.5 gal./min. (1.89 to 5.68 L/min.) |
| Hot Water Temperature Range | 110°F - 190°F (43°C - 87.8°C) |
| Operation Mode | auto fan mode - 4 fan speeds(hi/med/lo/off) manual fan mode - 3 fan speeds (hi/med/lo) |
| Size (WxHxD) | 28-3/8" 15-1/4" x 7-3/8" (720 x 387 x 187 mm) |
| Weight | 27.5 lbs. (12.5 kg) |
| Set Temperature Range | 50°F - 90°F (12°C - 30°C) |
| Electrical Rating | 120 volts AC, single phase 60 Hz high- 37 (0.4A) med - 16W low - 9W |
| Noise Level | High: 40 dBA Med: 35 dBA Low: 23 dBA NOTE: Noise levels tested at 2.5 m. |
| Fuse | 5A |
